Air Tanks (3)
Aluminium Air Tanks
Made from 5052 2.5mm thick H32 Heat treated Polished Aluminium. With a working pressure of 200psi. Burst pressure of 400psi
ATA-01-ALUM-03
1 Gallon/3Litre 3 port air tank
L390mm x H130mm x W95mm
Box Dimensions: 46cm x 18cm x 10cm
1 x 1/4” npt ports
2 x 3/8" npt ports
Weights: 1.35kg
ATA-03-ALUM-06
3 Gallon/9 Litre 6 port air tank
L465mm x H220mm x W180mm
Box Dimensions: 51cm x 27cm x 20cm
4 x 1/4” npt ports
2 x 3/8” npt ports
Weight: 2.3kg
ATA-05-ALUM-06
5 Gallon/15 Litre 5 port air tank
L760mm x H220mm x W180mm
Box Dimensions: 51cm x 27cm x 20cm
4 x 1/4” npt ports
2 x 3/8” npt ports
Weight: 3.3kg
Seamless Aluminium Air Tanks
Made from 6063 spun Aluminium with a thickness of 3.5mm made per SAEJ10 standards. With a working pressure of 200psi. Capable of withstanding 5 times it’s reservoir rated working pressure when hydrostatically applied internal pressure of 750psi.
ATAS-03-05
3 Gallon/9 Litre Port air tank
L460mm x H168mm x W190MM
Box Dimensions: 51cm x 20cm x 20cm
3 x 1/4” npt ports
2 X 3/8” npt ports
Weight: 3.3kg
ATAS-05-05
5 Gallon/15 Litre 5 Port air tank
L720mm x H168mm x W190mm
Box Dimensions: 79.5cm x 20cm x 20cm
3 x 1/4” npt ports
2 x 3/8” npt ports
Weight: 4.75kg

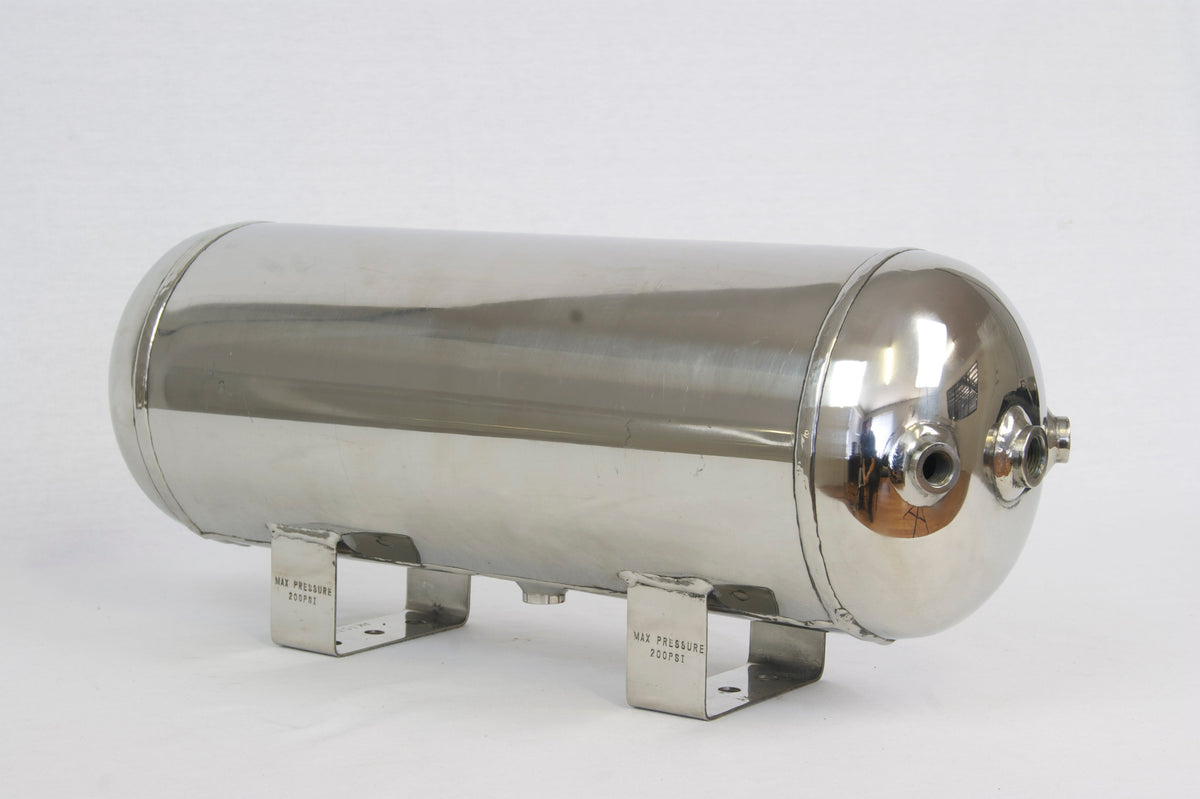

Stainless Steel Air Tanks
Made from 304 1.8mm thick Polished Stainless Steel.
With a working pressure of 200psi.
ATS-01-S/STEEL-03
1 Gallon/3Litre 3 port air tank
L390mm x H130mm x W95mm
Box Dimensions: 46cm x 18cm x 10cm
1 x 1/4” npt ports
2 x 3/8” npt ports
Weight: 3kg
ATS-03-S/STEEL-06
3 Gallon/9 Litre 6 port air tank
L465mm x H220mm x W180mm
Box Dimensions: 51cm x 27cm x 20cm
4 x 1/4” npt ports
2 x 3/8” npt ports
Weight: 5kg
ATS-05-S/STEEL-06
5 Gallon/15 Litre 6 port air tank
L760mm x H220mm x W180mm
Box Dimensions: 76cm x 27cm x 20cm
4 x 1/4” npt ports
2 x 3/8” npt ports
Weight: 8kg
